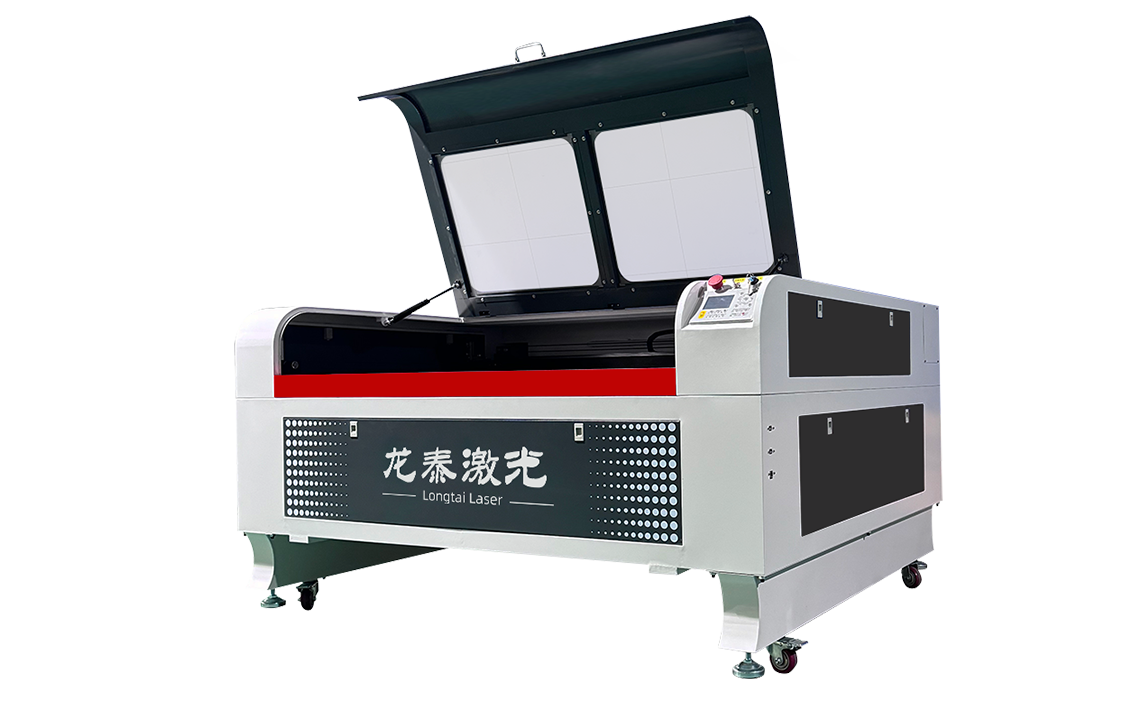

Economical style co2 laser cutting machine

This CO₂ laser cutter is widely applicable for engraving and cutting non-metallic materials across industries like crafts, furniture, advertising, apparel, and more. It features high-precision linear guide rail transmission for stable laser path and superior processing effects, plus an advanced DSP control system that ensures high speed and easy operation. Optional motorized lifting worktable supports thick material processing, while optional rotary attachment enables engraving on cylindrical objects (e.g., wine bottles, pen holders). Dual or multi-laser head configurations are also available to boost work efficiency.

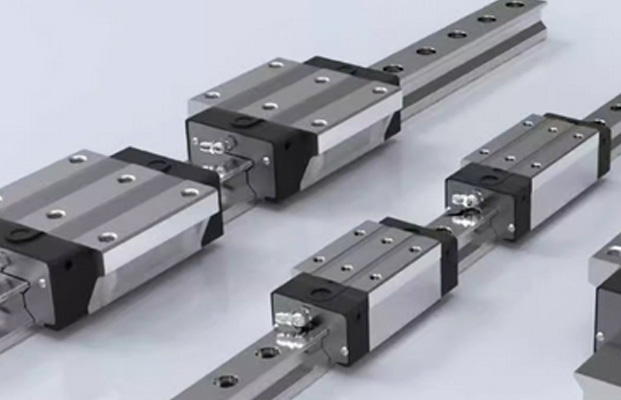

Equipped with high-precision linear guide rail transmission, the laser’s optical path and motion processes are significantly stabilized—directly contributing to superior cutting and engraving quality with finer details.

The integrated advanced DSP control system delivers outstanding performance: it enables high operating speed, simplifies operational procedures for user convenience, and boosts overall engraving and cutting efficiency substantially.

For enhanced versatility, customers can opt for a motorized lifting worktable, which facilitates smooth processing of thicker materials. Additionally, a rotary attachment is available as an option, designed specifically for engraving cylindrical objects like wine bottles, pen holders, and similar items.

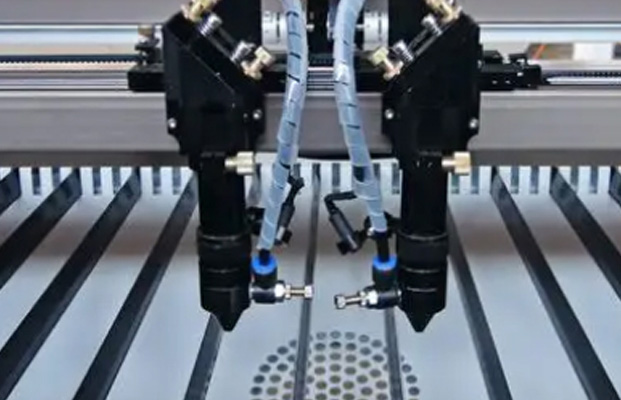

To further improve workflow efficiency, we also offer customization options for dual or multi-laser head configurations, allowing for higher throughput in production.

Inquiry

Main advantage

Affordable CNC Laser Cutter

Intelligent operating system

This system is easy to be operated and rich in functions. Even greenhands can cut high-quality samples.
Dust cover

The machine dust cover isdesigned to prevent dust fromgetting dirty.Guide rails, reducing precision.
Aggravatedmachine tool

The bed adopts an integralwelded structure, whichenhances the stability of themachine tool.

Technical parameters

Model	LT-6090	LT-1390	LT-1610
Laser power	50w-130w	80w-180w	80w-300w
Working Area	23.62"*35.43"	51.18"*35.43"	62.99"*39.37"
Machine Size			"
Min line width	≤0.01mm
Postion Accuracy	≤0.01mm
Repetition Accuracy	≤0.01mm
DPI	1500 DPI
Cutting Speed	1-600mm/s
Engraving Speed	1-1000mm/s
Cooling Method	Water Cooling
Operating Temperature	5 ℃-35 ℃
Compatible Software	Coreldraw，Autocad ，Photoshop，Lightburn.
Support Vector Files	dxf,ai,plt,dst,etc
System support	Windows XP/Win 7/8/10
Supply Voltage	110/220V±10%,50/60HZ

Cutting Samples
