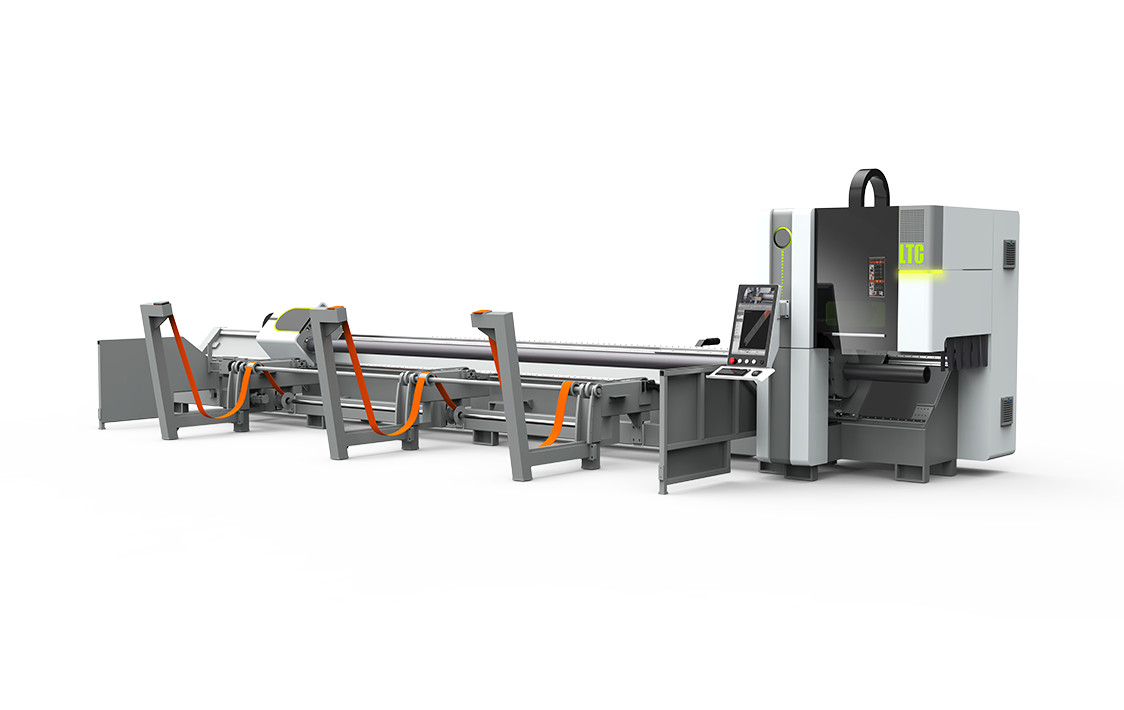

3D Laser Pipe Cutting Machine

Cutting pipes is made this easy. With intelligent control, you can cut at will, supporting high-precision and high-efficiency cutting of various metal pipes and drawn pipes. The non-inductive piercing is several times faster than ordinary piercing.

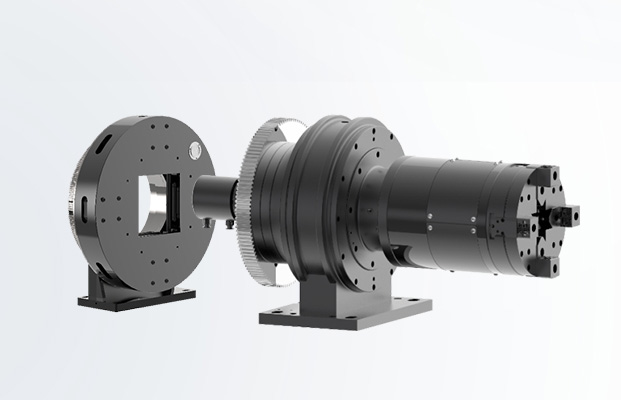

Pneumatic Precision Chuck

Ultra-short cutting leftover material ≥ 40mm

Pneumatic clamping/unclamping, automatic centering, stable holding, and anti-deformation support. It occupies little space and features high space utilization.

Inquiry

Main advantage

Affordable CNC Laser Cutter

Factory Direct Sales

Save your procurement costs. Complete specifications, sufficient stock, and fast delivery.
Customization Available

A variety of equipment models are available for selection. We have a professional technical and R&D team.
Quality Assurance

We hold various patent certificates. Lifetime after-sales service is provided. Technical staff offer on-site one-to-one commissioning.

Technical parameters

Power	1500 - 3000W	Wavelength	1070 NM
Line Width	≤0.15MM	Cooling Method	Water Cooling
Acceleration	1.5 G	Z-axis Stroke	200MM
X-axis Stroke-A	6945MM	W1/W2 Axis Stroke	360°
X-axis Stroke-B	400MM	Y, Z-axis Positioning Accuracy	±0.05MM
Specification	See description below	Repeatability	±0.05MM
Pipe Cutting Range		Round Pipe: 08 - 90MM; Square Pipe: 8 * 8 - 80 * 80MM
Loading Method		Semi-automatic/Full-automatic Loading (Optional)
Gross Weight of Main Equipment		≈2.6T
Main Equipment Size (Appearance Projection)		≈8900 * 1600 * 2100MM

Cutting Samples

Laser Machine Manufacturer

Longtai Laser is a prominent producer of fiber laser cutting equipment, providing an extensive array of solutions that incorporate advanced technology. Its product lineup covers fiber laser cutting machines, tube fiber laser cutting machines, sheet & tube dual-purpose fiber laser cutting machines, 3D fiber laser cutting machines, and hand-held welding machines. All these products have obtained CE and FDA certifications, and the company holds ISO 9001 certification. With a worldwide footprint spanning more than 180 countries, it also offers OEM services to over 100 manufacturers.
To extend its presence in the Americas, the company has set up offices, deployed skilled technicians, and maintained inventory in the United States, Mexico, and Colombia, catering to an expanding group of contented customers. Longtai Laser is a viable choice for those seeking innovative fabricating machinery solutions.
