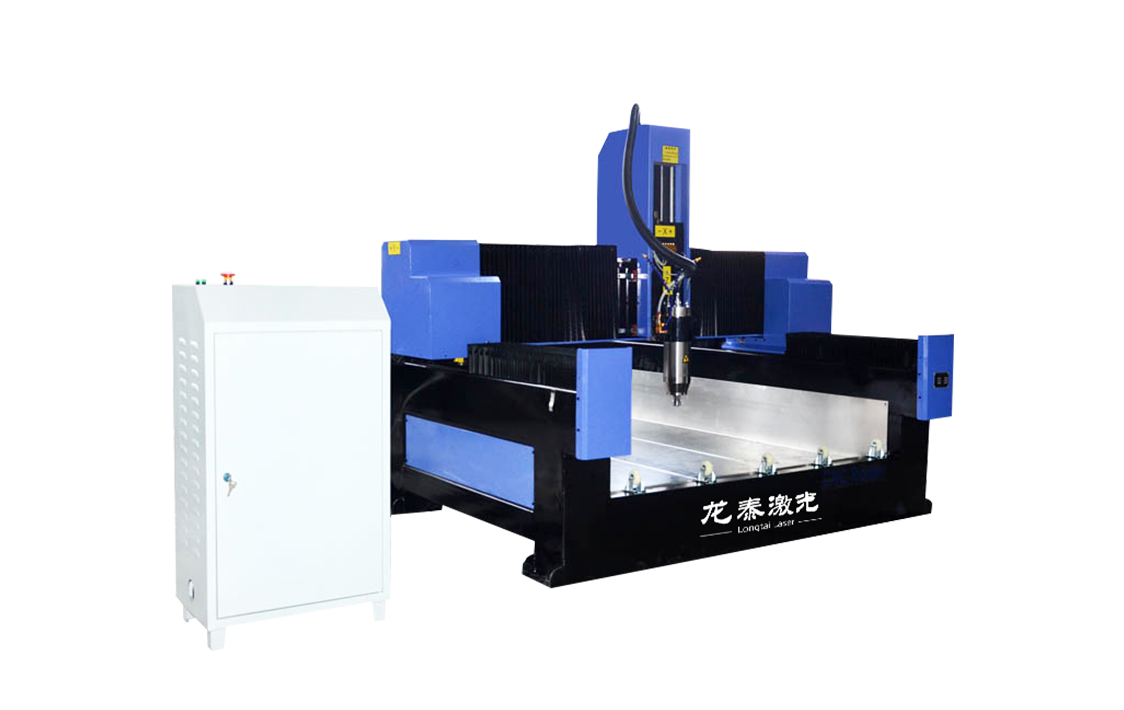

1325 HEAWY STONE ENGRAVING MACHINE

This equipment features a steel-structural welded fuselage with high rigidity to avoid deformation, and its workbench is equipped with a backing steel plate for enhanced strength, ensuring stable load-bearing performance of the robot. It is also compatible with various software such as Beijing Equity, Wentai, CAD, TYPE3 and ARTCAM, while its engraving system has a breakpoint current-resuming function, enabling seamless resumption of processing after power outages or the next day.

The fuselage is constructed using steel structural welding, boasting excellent rigidity that prevents deformation during operation. Its workbench is supported by a steel backing plate, which enhances overall structural strength and enables the robot to bear heavy loads stably.

This equipment offers broad software compatibility, seamlessly integrating with multiple industry-standard programs including Beijing Equity, Wentai, CAD, TYPE3, and ARTCAM.

Notably, the engraving system is equipped with a breakpoint current-resuming function. This feature allows processing tasks to be resumed smoothly—whether in the event of an unexpected power outage or when continuing operations the following day—without disrupting the workflow or compromising processing accuracy.

Inquiry

Main advantage

Affordable CNC Laser Cutter

Intelligent operating system

This system is easy to be operated and rich in functions. Even greenhands can cut high-quality samples.

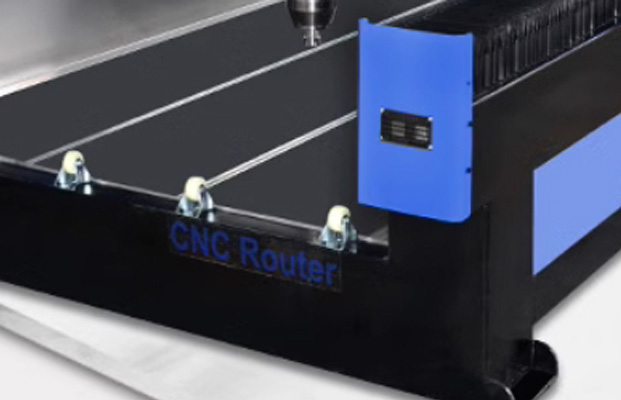

Dust cover

The machine dust cover isdesigned to prevent dust fromgetting dirty.Guide rails, reducing precision.
Aggravatedmachine tool

The bed adopts an integralwelded structure, whichenhances the stability of themachine tool.

Technical parameters

Working desk size	1300mm 2500mm 200mm
Stereo engraving dimensions	300mm high in diameter is 1800mm
Repeatability	<0.05mm/1000mm
Design/ Dragon Gate	Aluminum plate T-slot countertop + PVC, Fanggang gantry
Bed frame	Thickened and widened square tube welding bed (with horseshoe)
Run motor	Stepper motor (optional same server/hybrid servo)

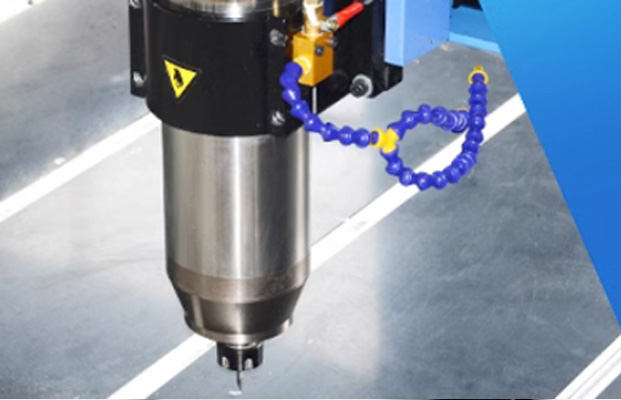

Spindle power		Water-cooled power 2.2kw, 3.0kw, 5.5kW (optional)
Spindle speed	6000-24000R/min
Operating Voltage	220V50Hz/380V50Hz
Run command	G code, f/s command is com patible
Maximum space speed	15M-Min
Transfer method	axis screw + square rail X-axis rack+ square rail Y-axis rack+ square rai (Y-axis dual motor)
Control System	NC studio/Richauto
Inverter	Southern Anhua inverter
Rail model	20/25 square rail (optional)
Transmission system	Rail+ oblique rack
Z-axis transmission system	High precision ball screw
A fixed way	Clamp
Dimensions	Diferent length 3000mm wide 2600mm high 1600mm
Total weight	About 1000 kg
Body color	Black red / blue white

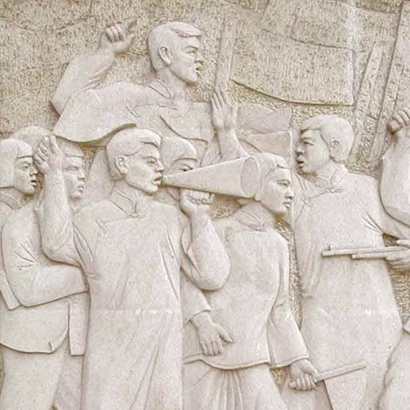

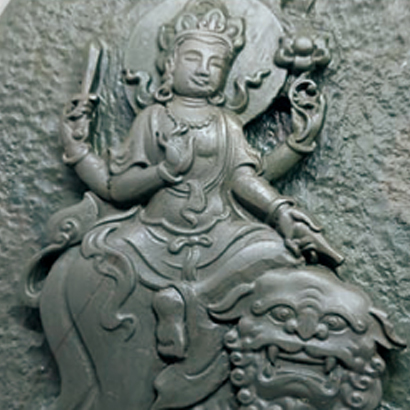

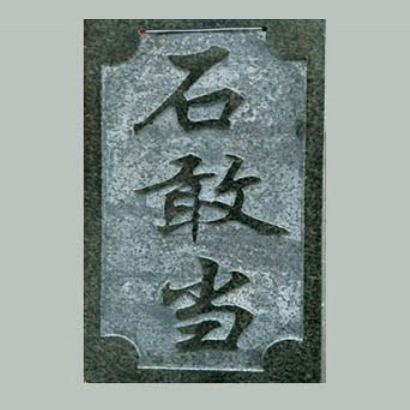

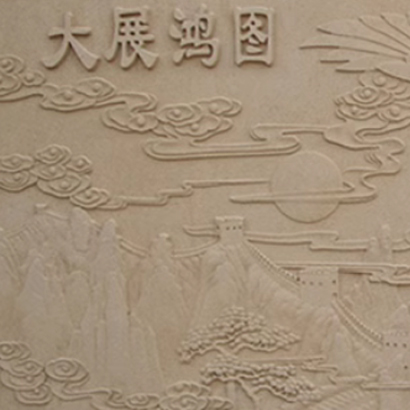

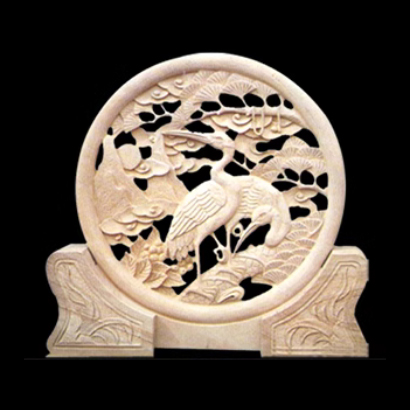

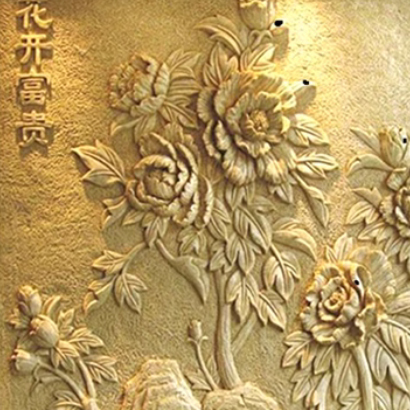

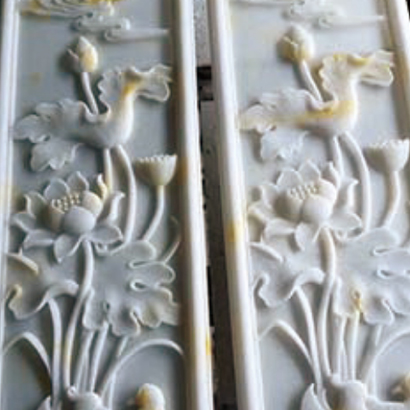

Cutting Samples
