Suitable Industries:
It is applicable to scenarios such as the batch production of wooden handicrafts, the manufacturing of woodworking furniture, the production and processing links of the advertising industry, and the processing of sheet metal products.
Suitable Materials:
It can be used with various materials including plexiglass, PVD boards, KT boards, wood boards, synthetic boards, acrylic, and metals.

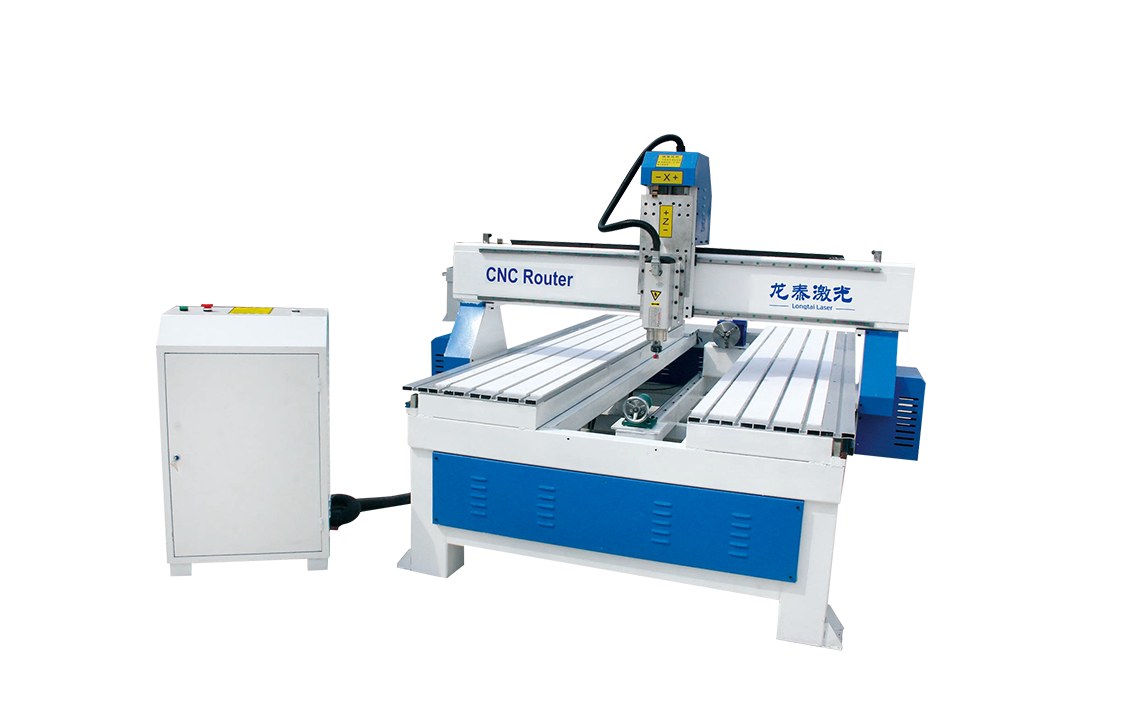

Engraving Machine Structural Advantages

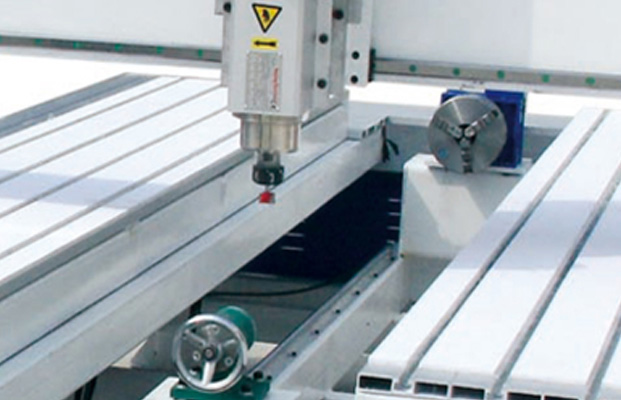

The engraving machine adopts a Z-axis rear-mounted triangular structure installation technique, paired with a triangular layout design for its guide rails. This specialized structural configuration significantly minimizes the resonance phenomenon generated by the Z-axis during operation. At the same time, it effectively extends the service life of the guide rail sliders and further enhances the overall engraving precision of the equipment.
Versatile Engraving Capabilities
It supports 360-degree engraving for a wide range of items, including human-shaped artworks, Buddha statue carvings, three-dimensional sculptures, various handicrafts, and wooden furniture pieces.
Affordable CNC Laser Cutter
This system is easy to be operated and rich in functions. Even greenhands can cut high-quality samples.
The machine dust cover isdesigned to prevent dust fromgetting dirty.Guide rails, reducing precision.
The bed adopts an integralwelded structure, whichenhances the stability of themachine tool.
| Working desk size | 1300mm *2500mm *200mm | ||
| Stereo engraving dimensions | 300mm high in diameter is 1800mm | ||
| Repeatability | <0.05mm/1000mm | ||
| Design/ Dragon Gate | Aluminum plate T-slot countertop + PVC, Fanggang gantry | ||
| Bed frame | Thickened and widened square tube welding bed (with horseshoe) | ||
Run motor | Stepper motor (optional same server/hybrid servo) | ||
| Spindle power | Water-cooled power 2.2kw, 3.0kw, 5.5kW (optional) | ||
| Spindle speed | 6000-24000R/min | ||
| Operating Voltage | 220V50Hz/380V50Hz | ||
| Run command | G code, f/s command is com patible | ||
| Maximum space speed | 15M-Min | ||
| Transfer method | axis screw + square rail X-axis rack+ square rail Y-axis rack+ square rai (Y-axis dual motor) | ||
| Control System | NC studio/Richauto | ||
| Inverter | Southern Anhua inverter | ||
| Rail model | 20/25 square rail (optional) | ||
| Transmission system | Rail+ oblique rack | ||
| Z-axis transmission system | High precision ball screw | ||
| A fixed way | Clamp | ||
| Dimensions | Diferent length 3000mm wide 2600mm high 1600mm | ||
| Total weight | About 1000 kg | ||
| Body color | Black red / blue white | ||
