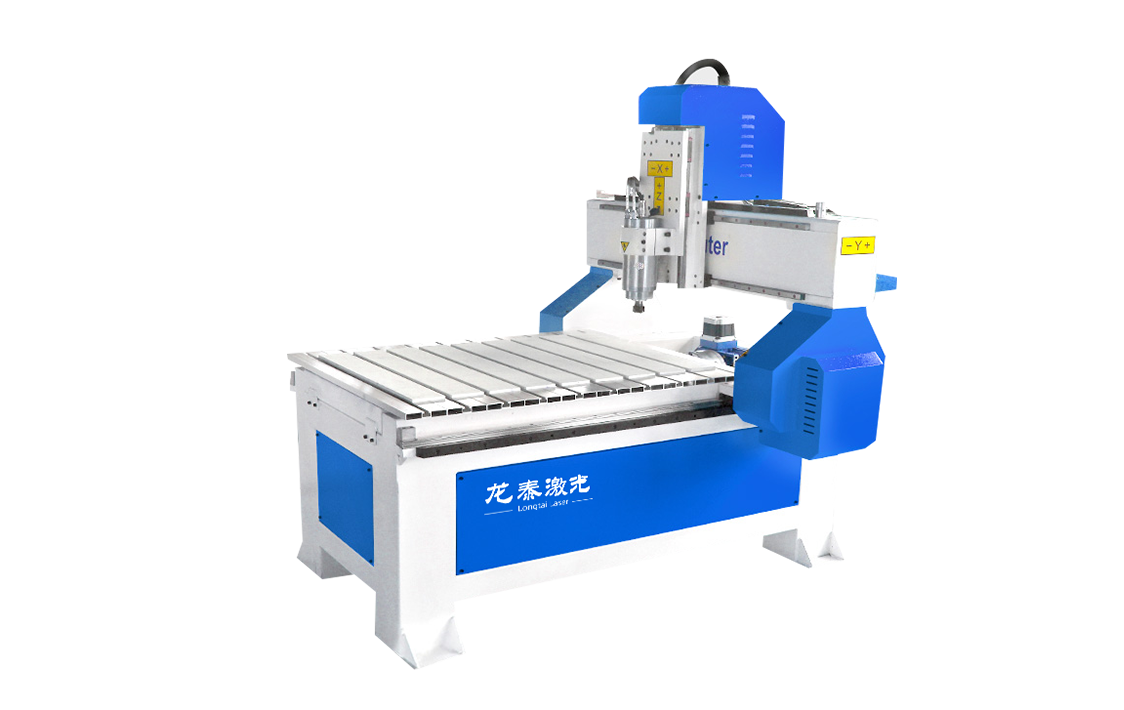

6090 TIMBER ENGRAVING MACHINE

The 6090 TIMBER ENGRAVING MACHINE is a specialized equipment designed for wood processing and engraving tasks. It features a 600mm900mm working area, which is suitable for handling various sizes of wood materials, such as solid wood boards, plywood, and MDF (Medium-Density Fiberboard).

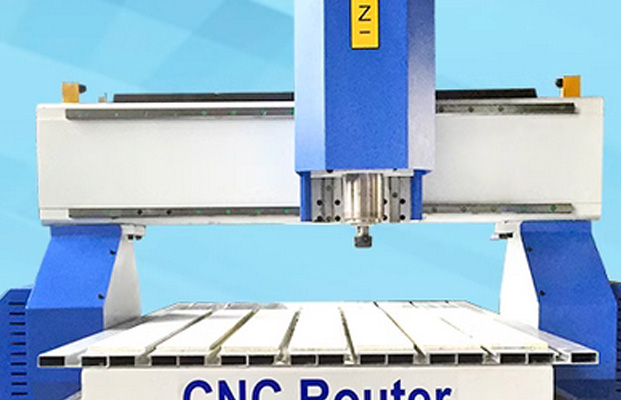

For the Z-axis, the machine employs a rear-mounted triangular installation design, paired with a triangular arrangement of guide rails. This specialized structural configuration significantly minimizes resonance caused by Z-axis movement, extends the service life of guide rail sliders, and further enhances the overall engraving precision of the equipment.

Inquiry

Main advantage

Affordable CNC Laser Cutter

Intelligent operating system

This system is easy to be operated and rich in functions. Even greenhands can cut high-quality samples.

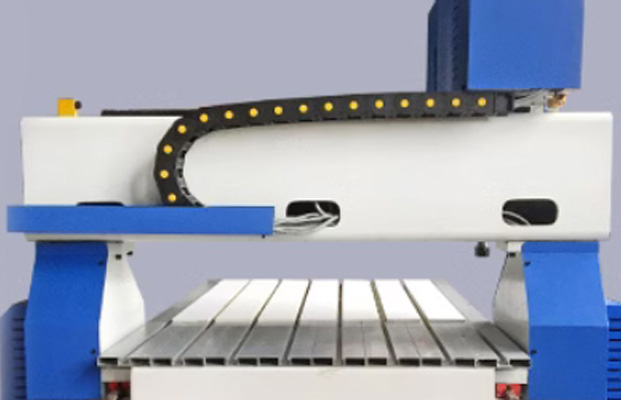

Dust cover

The machine dust cover isdesigned to prevent dust fromgetting dirty.Guide rails, reducing precision.
Aggravatedmachine tool

The bed adopts an integralwelded structure, whichenhances the stability of themachine tool.

Technical parameters

Working desk size	600mm 900mm 200mm
Bed frame	Thickened and wide square tube welding bed (with horseshoe)
Repeatability	<0.05mm/1000mm
Design/ Dragon Gate	Aluminum plate T-slot countertop + PVC, Fanggang gantry
Run motor	G code, f/s command is compatible
Spindle power		Water-cooled power 2.2kw, 3.0kw, 5.5kW (optional)
Spindle speed	6000-24000R/min
Operating Voltage	220V50Hz/380V50Hz
Run command	G code, f/s command is com patible
Maximum space speed	15M-Min
Transfer method	axis screw + square rail X-axis rack+ square rail Y-axis rack+ square rai (Y-axis dual motor)
Control System	Macro system
Inverter	Southern Anhua inverter
Rail model	S20/25 square rail (optional)
Transmission system	Rail+ oblique rack
Z-axis transmission system	High precision ball screw
A fixed way	Plate
Dimensions	Diferent length 1200mm wide 1400mm high 1600mm
Total weight	About 4000 kg
Body color	Black red / blue white

Cutting Samples
